Using Azure App Services with Node.js

Often we hear about how Azure is "Microsoft" whereas other cloud providers aren't. In the most obvious sense, they're right -- Microsoft owns it. However, when you look closer what they actually mean is that Azure is Microsoft-only and Google/AWS are open to other programming models.

This is ridiculous and only said by people gulping down electrolyte-loaded propaganda by the water cooler. In reality, there's nothing proprietary or Microsoft-only about Azure as a whole. It's a nonsensical bias to say otherwise. Azure is platform agnostic. You don't need a VM (=IAAS) to do your Node (or Python development). Absolutely zero hacks are required to put your Node application in Azure App Services (=PAAS).

It reminds me of when HTML5 became popular: there we still Flash-zealots pushing their "LOL browsers can't do animation nonsense LOL". They forgot to leave their echo chamber before attempting to entering reality.

Software engineers steeped in Microsoft technologies for over a decade understand that you must make a distinction between Ballmer and non-Ballmer Microsoft. To give an extreme contrast: the former is VB6, the latter is .NET Core. You can see the transition from Ballmer-nonsense to non-Ballmer-sanity since around .NET 4 (especially in the adoption of ASP.NET MVC as an open-source tool). Ballmer is Silverlight, non-Ballmer is adoption-of-HTML5. You can go on down the line.

In the end: Ballmer-Microsoft is Microsoft-as-evil-empire. Today's Microsoft is fully amiable toward Linux; they also rely on Github for many SDKs and for just about all Azure documentation. It's a different beast.

You need to examine Azure through this Ballmer / non-Ballmer paradigm. Put concretely: Windows Azure (and Azure ASM) was Ballmer whereas Microsoft Azure (and Azure ARM) is non-Ballmer. Much of the "LOL Azure is Microsoft-only LOL" nonsense comes from confusion about the transition between Azure "versions". Much of this is also Microsoft's fault: just about all the books out there are completely obsolete! The official-book for the 70-532 exam will absolutely guarantee that you fail the exam.

For the topic at hand, we shouldn't look at Azure in an ad hoc manner, but in the context of it's intimately related technologies. Specifically we need to look at the development of IIS as it passed from a Ballmer to a non-Ballmer implementation.

Working with IIS

My life with IIS started around the IIS3 era. I still remember taking the IIS3 exam as an elective (with the TCP/IP exam) for my NT4 MCSE. Thus, I've seen the various large upgrades and incremental updates over a good stretch of time.

The upgrade from IIS6 to IIS7 was easily the largest IIS upgrade; it laid the groundwork for eventually stripping out the last vestige of Ballmerisms via its flexible APIs. Till IIS7, the biggest upgrade was a silly configuration system update (=IIS4 metabase). The IIS7 upgrade consisted of a systematic, paradigmatic shift. It was the "classical" to the "integrated" pipeline upgrade. The upgrade to so deep, that you literally had to update your applications to add IIS7 support. After a while, all development was IIS7-first with IIS6 backwards compatibility added subsequently.

In practice, this classic -> integrated upgrade meant three things: First, instead of relying on the external ASP.NET ISAPI IIS plug-in, ASP.NET processing was integrated into IIS. No more interop. This made ASP.NET development more natural. It also gave .NET access to core extensibility functionality in IIS. You didn't need to whip out C++ for server extensibility. Second, if you had existing C++ functionality, you had easier access to IIS functionality with the new native IIS API. This second point is critical, because we see that the IIS7 upgrade wasn't just about .NET. Third, web.config was no longer about ASP.NET, but about IIS itself. This point is huge and points to the fact that the web.config format controls all over IIS7+, as seen in the global applicationHost.config file.

IIS6 used the rediculous ISAPI nonsense to do just about everything, including call ASP.NET. The .aspx extension was simply mapped to aspnet_isapi.dll. This wasn't removed from IIS7; it was just separated and called "classic" mode.

In this a IIS7 world, this meant that you literally had to add handler / module support for both IIS6 and IIS7 (more accurately, the classical and integrated models).

Furthermore, the low-level ASP.NET pipeline APIs were also affected. For my deeply low-level Themelia framework, I had to make checks between completely different pipelines. See the following snippet from my CoreModule (a typical module implementing the System.Web.IHttpModule interface):

View Themelia at Themelia Pro. View Themelia source at Themelia on Github

CoreModule.cs:


    if (HttpRuntime.UsingIntegratedPipeline)
    {
        httpApplication.PostResolveRequestCache += OnProcessRoute;
        httpApplication.PostMapRequestHandler += OnSetHandler;
    }
    else
    {
        httpApplication.PostMapRequestHandler += OnProcessRoute;
        httpApplication.PostMapRequestHandler += OnSetHandler;
    }

Reference: CoreModule.cs

The installation was also different between IIS6 ("classical") and IIS7 ("integrated"):

For IIS6, I would add the module to system.web:


    <system.web>
        <httpModules>
            <add name="Themelia" type="Themelia.Web.CoreModule, Themelia.Web"/>
        </httpModules>
    </system.web>

For IIS7, I would add the module to system.webServer:


    <system.webServer>
        <modules>
            <remove name="Session"/>
            <add name="Session" type="System.Web.SessionState.SessionStateModule" preCondition=""/>
            <add name="Themelia" type="Themelia.Web.CoreModule, Themelia.Web"/>
        </modules>
    </system.webServer>

There is also the much more popular concept of a handler. My framework was meant to be a full IIS6-era platform takeover, so I used a more greedy module, but if you're only doing specific framework development, handlers are your choice. ASP.NET MVC, for example, uses handler.

ASP.NET MVC is actually an excellent example. Assuming ASP.NET was properly installed, for IIS7, they were able to take advantage of the fact that IIS7 processed everything (e.g. /contact) as .NET (though you still needed runAllManagedModulesForAllRequests enabled to disable that slight perf boost). For IIS6, because it had to know when to call the ASP.NET ISAPI filter, you had to add a wildcard handling to get the ISAPI filter handle extenstionless paths (again, e.g. /contact).


    <system.webServer>
        <handlers>
            <add verb="*" path=".png" name="WatermarkHandler" type="WatermarkHandler"/>
        </handlers>
    </system.webServer>

Handlers and modules are still the standard was of tapping into the stream of raw power.

.NET is powerful. C# even has an unmanaged mode where you can crack open the covers (via unsafe mode) to do direct *pointer &manipulation. That said, the upgrade to IIS7 wasn't just about .NET; the upgrade provided a native IIS API as well.

Thus we enter the realm of C/C++ modules: Develop a Native C\C++ Module for IIS 7.0

By removing the ISAPI barrier and providing a clean, native IIS API C++ developers could more easily connect existing C++ functionality to IIS. It also made ASP.NET C++ code more expressive; familiar web terms like HttpContext, IHttpResponse, and BeginRequest (and other events) are all over IIS C++ code. No more DWORD WINAPI HttpExtensionProc(EXTENSION_CONTROL_BLOCK *pECB) nonsense.

Seriously. Review the C++ ISAPI docs. They're insane. 1990s Microsoft C++ was the worst code ever written. It's just plain satanic.

Consider the following IIS7-esque native C++ method:


    HRESULT
    __stdcall
    RegisterModule(
        DWORD                           dwServerVersion,
        IHttpModuleRegistrationInfo *   pModuleInfo,
        IHttpServer *                   pHttpServer
    )
    {
    }

That's exactly how you register your native modules in IIS7. That's not too terribly evil. You can see that it's registering a module, and bringing in points to core IIS entities.

This is also exactly how IIS handles Node hosting in Azure; it uses the iisnode module. You can see RegisterModule in main.cpp in iisnode:

https://github.com/tjanczuk/iisnode/blob/master/src/iisnode/main.cpp

If you review the following code from CProtocolBridge.cpp in iisnode, you'll see familiar things like IHttpContext and IHttpResponse:

https://github.com/tjanczuk/iisnode/blob/master/src/iisnode/cprotocolbridge.cpp

It's clean interface programming.

Using iisnode

IIS handles most of it's config with your applications web.config. While there are a few global config files, you get tremendous control with your own config.

Hosting a Node application in Azure is as simple as deploying an Azure Web App with a properly configured web.config.

You can following along with the following activities by deploying the following repo -> https://github.com/davidbetz/template-azure-node-api.

Per the previous explanation of IIS modules, you can see from the following web.config that iisnode is installed just as we would install our own handlers and modules. There are no hacks whatsoever.


    <?xml version="1.0" encoding="utf-8"?>
    <configuration>
      <system.webServer>
        <!-- leave false, you enable support in Azure -->
        <webSocket enabled="false" />
        <handlers>
          <add name="iisnode" path="server.js" verb="*" modules="iisnode"/>
        </handlers>
        <rewrite>
          <rules>
            <rule name="StaticContent">
              <action type="Rewrite" url="content{REQUEST_URI}"/>
            </rule>
            <rule name="DynamicContent">
              <conditions>
                <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="True"/>
              </conditions>
              <action type="Rewrite" url="server.js"/>
            </rule>
            <rule name="Redirect to https" stopProcessing="true">
              <match url="(.*)" />
              <conditions>
                <add input="{HTTPS}" pattern="off" ignoreCase="true" />
              </conditions>
              <action type="Redirect" url="https://{HTTP_HOST}{REQUEST_URI}" redirectType="Permanent" appendQueryString="false" />
            </rule>
          </rules>
        </rewrite>
        <security>
          <requestFiltering>
            <hiddenSegments>
              <remove segment="bin"/>
            </hiddenSegments>
          </requestFiltering>
        </security>
        <httpErrors existingResponse="PassThrough" />
      </system.webServer>
    </configuration>

The following section listens for any requests for all verbs accessing server.js and has iisnode process them:


    <handlers>
        <add name="iisnode" path="server.js" verb="*" modules="iisnode"/>
    </handlers>

The following rewrite rule sends all traffic to server.js:


    <rule name="DynamicContent">
        <conditions>
            <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="True"/>
        </conditions>
        <action type="Rewrite" url="server.js"/>
    </rule>

The following doesn't have anything directly to with iisnode; it excludes the content folder from iisnode processing:


    <rule name="StaticContent">
        <action type="Rewrite" url="content{REQUEST_URI}"/>
    </rule>

I find putting static files on your web server to be naive, but if you really don't want to use the Azure CDN, that is how you host static content.

The following merely redirects HTTP to HTTPS:


    <rule name="HTTP to HTTPS redirect" stopProcessing="true">
        <match url="(.*)" />
        <conditions>
            <add input="{HTTPS}" pattern="off" ignoreCase="true" />
        </conditions>
        <action type="Redirect" url="https://{HTTP_HOST}/{REQUEST_URI}" redirectType="Permanent" />
    </rule>

Breaking iisnode

To prove that Node hosting is actually this basic, let's break it, then fix it.

First, let's see this work:

https://node38eb089b-app-alpha.azurewebsites.net/api/samples

it works

That's the expected output from the application.

Now, let's go to web.config and break it:


  <rule name="DynamicContent">
    <conditions>
      <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="True"/>
    </conditions>
    <action type="Rewrite" url="server.js"/>
  </rule>

Change that Rewrite from server.js to server2.js:

Save. Refresh browser.

404

Nope.

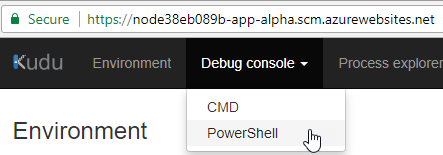

Go to Kudu. This is the .scm. URL. In this case it's the following:

https://node3638972b-app-alpha.scm.azurewebsites.net/

kudu

Rename server.js to server2.js:

rename server.js to server2.js

Refresh again.

rawcodeoutput

mmmk. Raw output.

The rewrite is telling everything to go to server.js, but nothing is processing it, so it just sends the file back.

This is exactly like accessing an old .aspx page and getting the raw ASP.NET webform code, because you forgot to install ASP.NET (and somehow managed to allow access to .aspx).

Now, let's fix this by telling our IIS module to process server2.js:


    <handlers>
      <add name="iisnode" path="server2.js" verb="*" modules="iisnode"/>
    </handlers>

Refresh and it's all well again:

it works

App Services and App Service Plan Mechanics

An explanation of Azure web apps using any web platform isn't complete without reviewing the mechanic of Azure web apps.

To begin, let's clarify a few Azure terms:

Azure App Service Plans are effectively managed VMs. You can scale these up and out. That is, you can turn an S1 into an S2 to double the RAM or you can turn a single instance into four. Because of this later ability, App Service Plans are also known as server farms. In fact, when developing ARM templates, the type you use to deploy an App Service Plan is Microsoft.Web/serverfarms.

You do not deploy a series of plans to create a farm. Plans are farms. Plans with a size of 1 is just a farm with 1 instance. You are always dealing with herds, you are never dealing with pets. You scale your farm out, you scale all those instances up.

Azure Web Apps are also known as Web Sites and App Services. You deploy these, you back these up, and you add SSL to these. These are similar to IIS virtual applications. When developing ARM templates, the type is Microsoft.Web/sites.

You do need to remember the various synonyms for each; you will see them all.

Given this distinction and given the fact that a VM can have multiple IIS applications, you can imagine that you can host multiple Azure Web Apps on a single App Service Plan. This is true. You do NOT deploy a plan every time you deploy a site. You plan your CPU/RAM usage capacity ahead of time and deploy a full solution at once.

To visualize the App Service / App Service Plan distinction, review the following image.

Here I've provide information for three services over two service plans. The first two services share a service plan, the third service is on a different plan.

Notice that the services with the same service plan have the same machine ID and instance ID, but their IIS specifics are different. The third service plan has a different machine ID altogether.

What's so special about the types of Web Apps?

If this is all just the same IIS, what's with the various Node-specific web app types?

web app types

The answer is simple: they exist solely to confuse you.

Fine. Whatever. The different types are hello-world templates, but you're going to overwrite them via deployment anyway.

You can literally deploy a Node.js web app, then deploy and ASP.NET site on it. It's just IIS. The website deployment will overwrite the web.config with its own.

Given the previous explanations of IIS handler/modules, iisnode-as-module, and the service/plan distinction, you can see that there's no magic. There's nothing Microsoft-only about any of this.

You can always use the normal "Web App" one and be done with it.

Single App Solutions

My websites are generally ASP.NET or Python/Django, but my APIs are always Node (ever since someone at Microsoft with an IQ of a Pennsylvania speed limit decided to deprecate Web API and rebuild it as "MVC" in ASP.NET Core). There was a time when my APIs and my website required separate... just about everything. Now adays I use nginx as a single point of contact to serve traffic from various internal sources: one source to handle the website as a whole (either http://127.0.0.1:XXXX or a Linux socket) and another to handle /api. This lets me use a single domain (therefore a single SSL cert) for my solution.

In Azure, this functionality is provided by Application Gateway.

Think back through all the mechanics we've covered so far: IIS can handle .NET and supports modules. iisnode is a module. IIS uses rewriting to send everything to server.js. iisnode handles all traffic sent to server.js.

Let's mix this up: instead of rewriting everything to server.js, let's only rewrite the /api branch of our URL.

To make this example a bit spicier, let's deploy an ASP.NET MVC application to our App Service, then send /api to Node.

To do this, go to the App Service (not the App Service Plan!), then select Deployment Options on the left.

external

In Choose source, select External Repository and put in the following:

https://github.com/Azure-Samples/app-service-web-dotnet-get-started

external

A few minutes later, load the application normally. You'll see the "ASP.NET is a free web framework for..." propaganda.

Now go back into Kudu and the PowerShell Debug Console (explained earlier).

We need to do three things:

  • add our server.js
  • install express
  • tell web.config about server.js

To add server.js, go to site/wwwroot and type the following:

touch server.js

This will create the file. Edit the file and paste in server from the following:

https://github.com/davidbetz/template-azure-node-api/blob/master/server.js

Next we need to install express to handle the API processing. H

For the sake of a demo, type the following:

npm install express

Done.

For the sake of your long-term sanity, create package.json (same way you created server.js), edit in contents, save, then run:

npm install

See sample package.json at:

https://raw.githubusercontent.com/davidbetz/template-azure-node-api/master/package.json

Finally, edit web.config.

You need the splice in the following config in the system:


  <system.webServer>
    <rewrite>
      <rules>
        <rule name="DynamicContent">
          <match url="^api/(.*)" />
          <action type="Rewrite" url="server.js"/>
        </rule>
      </rules>
    </rewrite>
    <handlers>
      <add name="iisnode" path="server.js" verb="*" modules="iisnode"/>
    </handlers>
  </system.webServer>

Upon saving, access the web app root and /api/samples. Click around the web app to prove to yourself that it's not just a static page.

asp.net and node together

You have ASP.NET and Node.js in the same Azure web app. According to a lot of the FUD out there, this shouldn't be possible.

In addition to hosting your SPA and your APIs in the same place, you also don't need to play with CORS nonsense. You also don't need an Application Gateway (=Microsoft's nginx) to do the same thing
